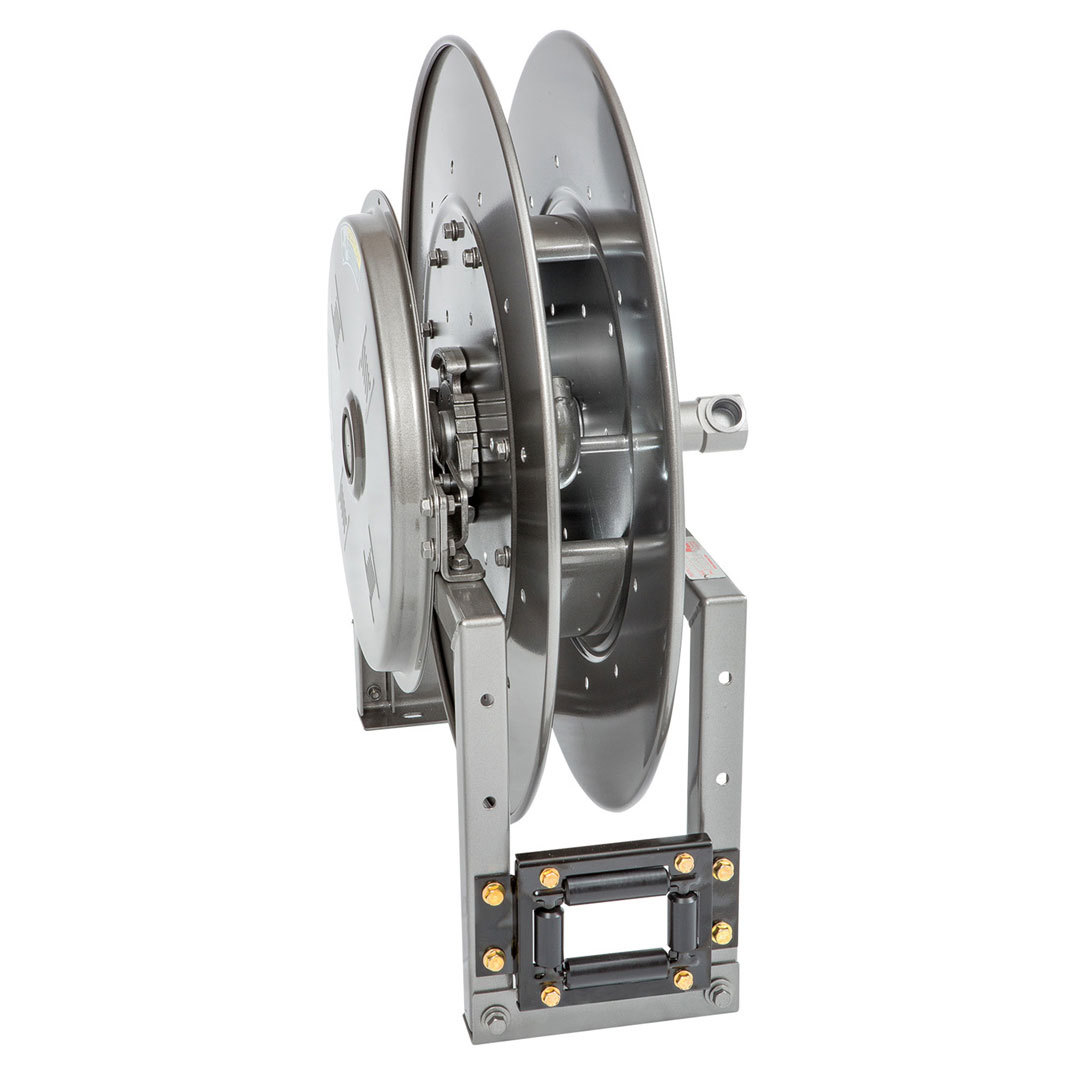

SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information.
Description
Can handle 3/4″ or 1″ I.D. hose
- Non-sparking ratchet assembly.
- Declutching arbor to prevent damage from reverse winding.
- Standard inlet: 90° balanced pressure swivel joint 1″ female NPT threads.
- Standard outlet: 1″ female NPT threads.
- Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
- Temperatures from -40° F to +250° F (-40° C to +121° C).
- Contact us for other available pressures and temperatures.
- 4-way roller assembly.
- Constant tension is available, contact us for more information.

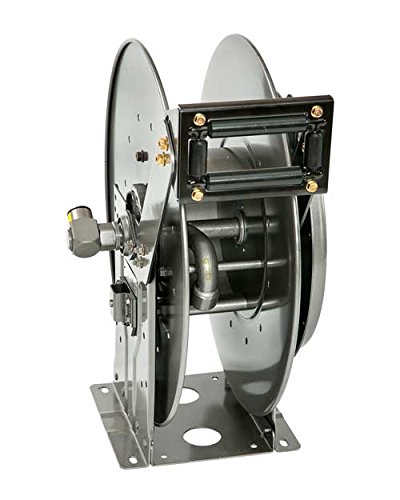

- Standard N series has a narrow frame and compact mounting base (view photo)
| Model | Hose Capacity |
| N816-25-26-10.5B | 3/4” holds 60 feet 1” holds 35 feet |
| N818-25-26-10.5B | 3/4” holds 70 feet 1” holds 50 feet |
| 816-25-26-10.5B | 3/4” holds 60 feet 1” holds 35 feet |
| 818-25-26-10.5B | 3/4” holds 70 feet 1” holds 50 feet |
| 820-25-26-10.5A | 3/4” holds 85 feet 1” holds 75 feet |
| 820-30-31-10.5A | 1” holds 100 feet |
| 820-30-31-15.5A | 3/4” holds 100 feet |
