Fill-Rite® AC pumps are heavy duty design with all cast iron construction, thermal protection and a wide range of flow rates to support both standard and high flow systems. Whether fueling construction or mining equipment, or tractors and combines, the quality and durability of our AC pumps provide quick fueling and dependability you can only achieve with Fill-Rite.
- Description
- Additional information
Description

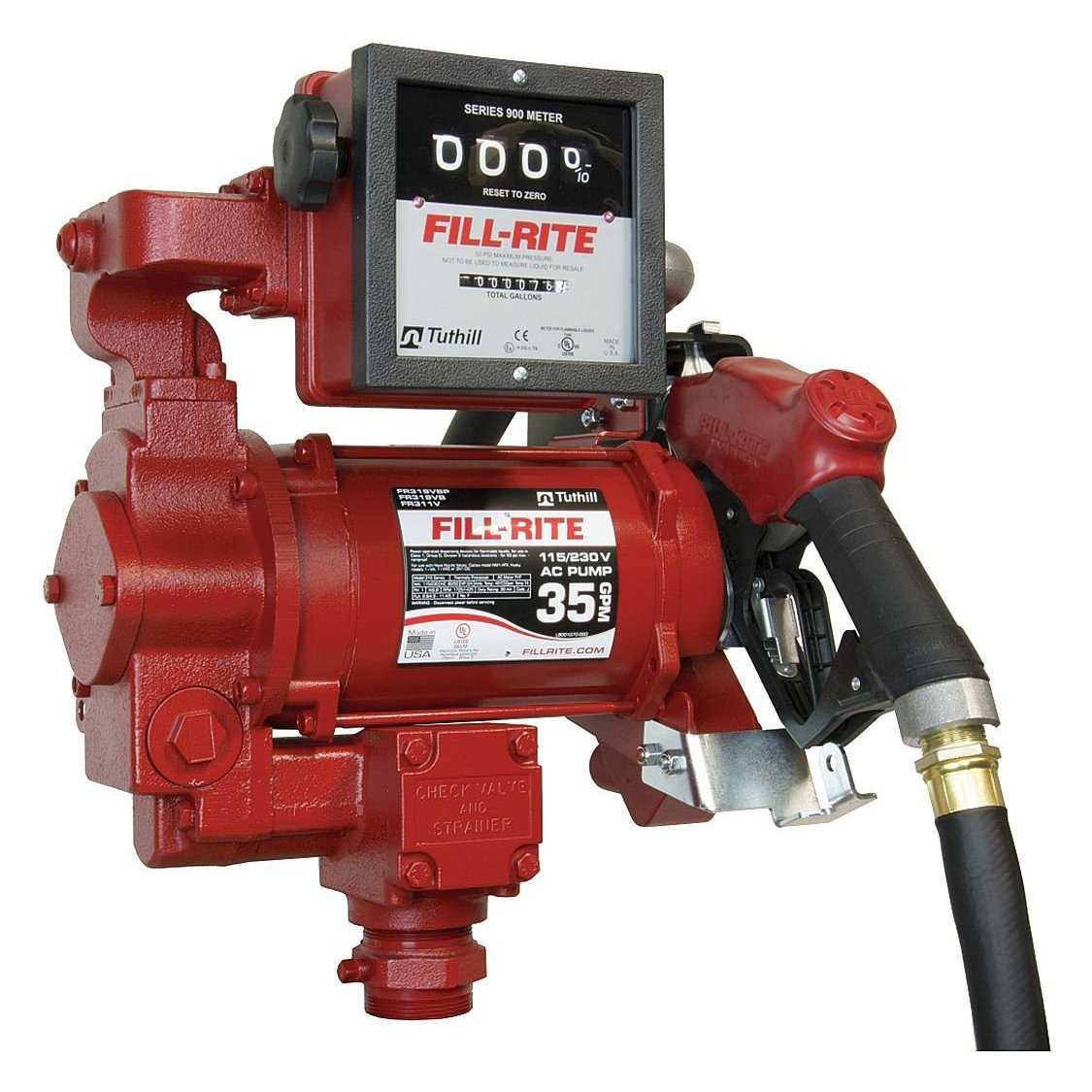

115/230 VAC Fuel Transfer Pump (shown with pump & meter, NOT INCLUDED)
Features and Benefits
- Pump and liter meter only
- Shown with optional hose and manual nozzle
- 120 LPM
- 0,56 kW Motor
- 13 Motor Amps
- 115/230 VAC
- 4-Wheel Mechanical Meter (Model Number 901LX418)
- 7 Totalizer Digits
- +/- 2,00% Meter Accuracy
- 1,8 Bar Max Pressure
- 50/60 Hz
- Thermal Overload Protection
- 1.5 in. Inlet, 1 in. Outlet, BSPT-F Ports
- 2 in. BSPT-M Tank Adapter
- By-pass Valves
- Built-in Strainer
- 30 Minute Duty Cycle
- Built-in Check Valve
- Self Priming
Additional information
| Weight | 86 lbs |
|---|---|
| manufacturer | Fill-Rite / Tuthill |
