Change capacity or package

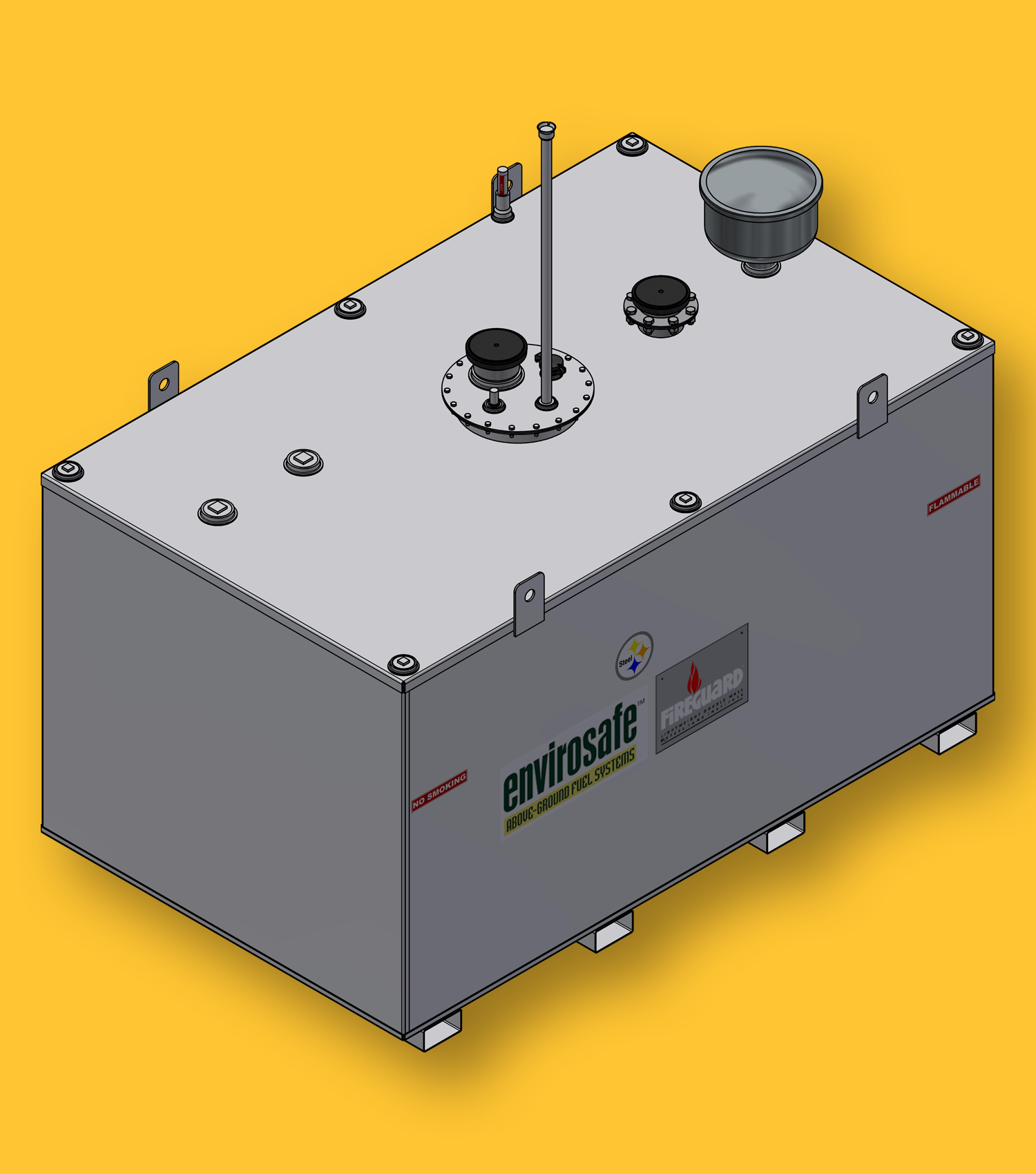

FIREGUARD® / UL 2085 · Ready-2-Fill
Tank + fill, vent & monitoring equipment
Start with an equipped storage tank and coordinate your dispensing system separately.
- Spill containment and overfill prevention
- Normal and emergency vent equipment
- Fuel-level and interstitial gauges
Configure the equipment around your fuel and site. The formal quote confirms the final supply scope.
Current catalog price
Original price was: $25,051.67.$22,810.08Current price is: $22,810.08.
In stock
BUYING OPTIONS
Order this tank configuration
Need the pump and hose supplied with the tank? Compare the Turn-key package before ordering.
01 / THE PACKAGE
What you’re choosing.
Your team already has dispensing equipment or wants to specify the pump, hose and controls separately.
Fill equipment
The listed package includes spill containment and overfill prevention equipment.
Venting
Normal and emergency vent equipment are part of the listed tank package.
Tank gauges
Fuel-level and interstitial gauges are included in the listed configuration.
- Who supplies the pump, hose and controls
- Equipment compatibility and tank connections
- Site work, unloading and commissioning
02 / CHECK THE FIT
Same 2,000 gallons.
Three equipment packages.
The difference is how much equipment comes with the tank—and what your team will specify separately.
Turn-key
Tank + dispensing equipment
Coordinate the tank and dispensing equipment together.
View Turn-keyReady-2-Fill
Tank + fill, vent & monitoring equipment
Supply or specify your dispensing equipment separately.
Current configuration
Bare tank
Tank for your equipment team
Have your equipment team specify the complete tank fit-out.
View Bare tankCATALOG REFERENCE
Dimensions & specifications.

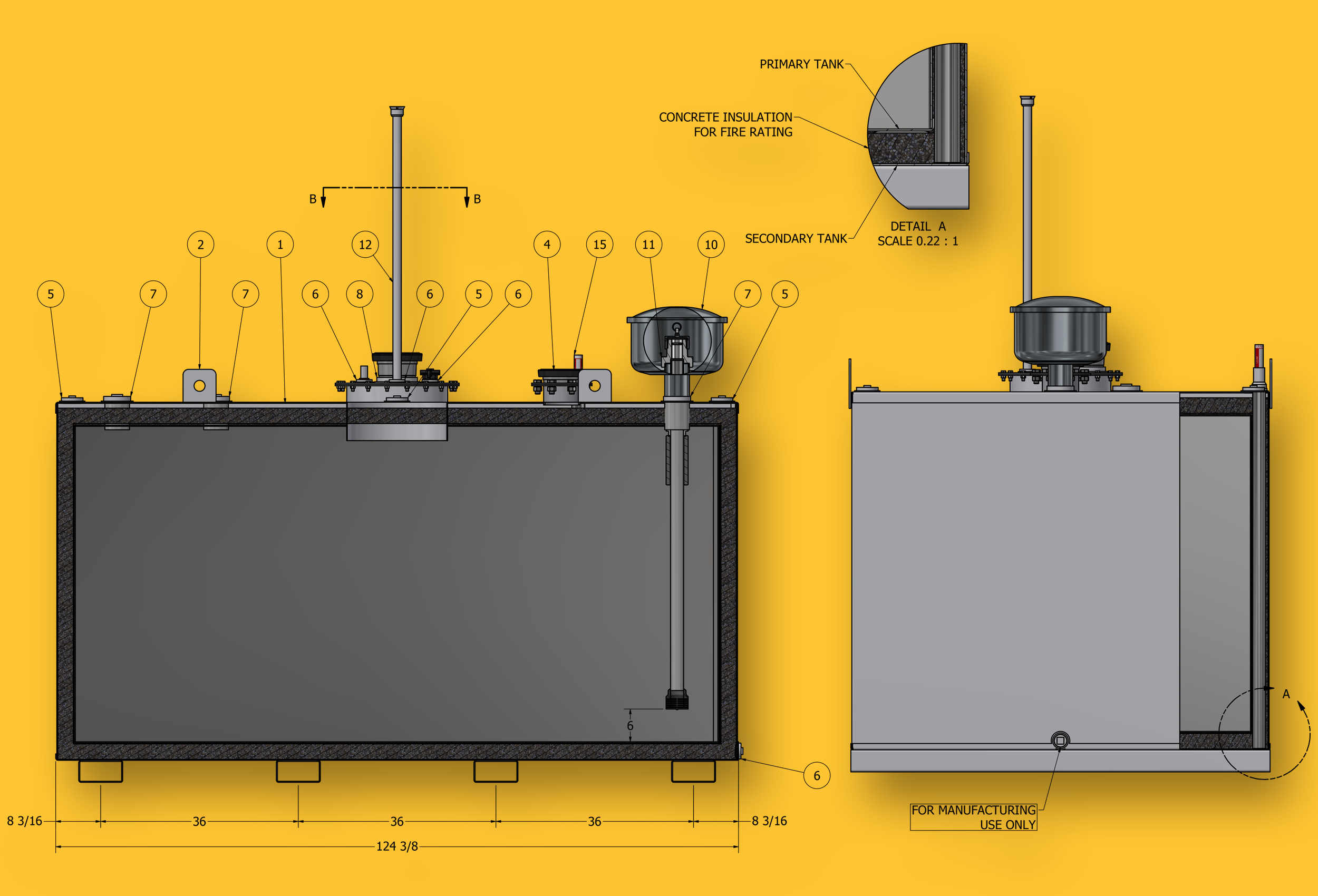

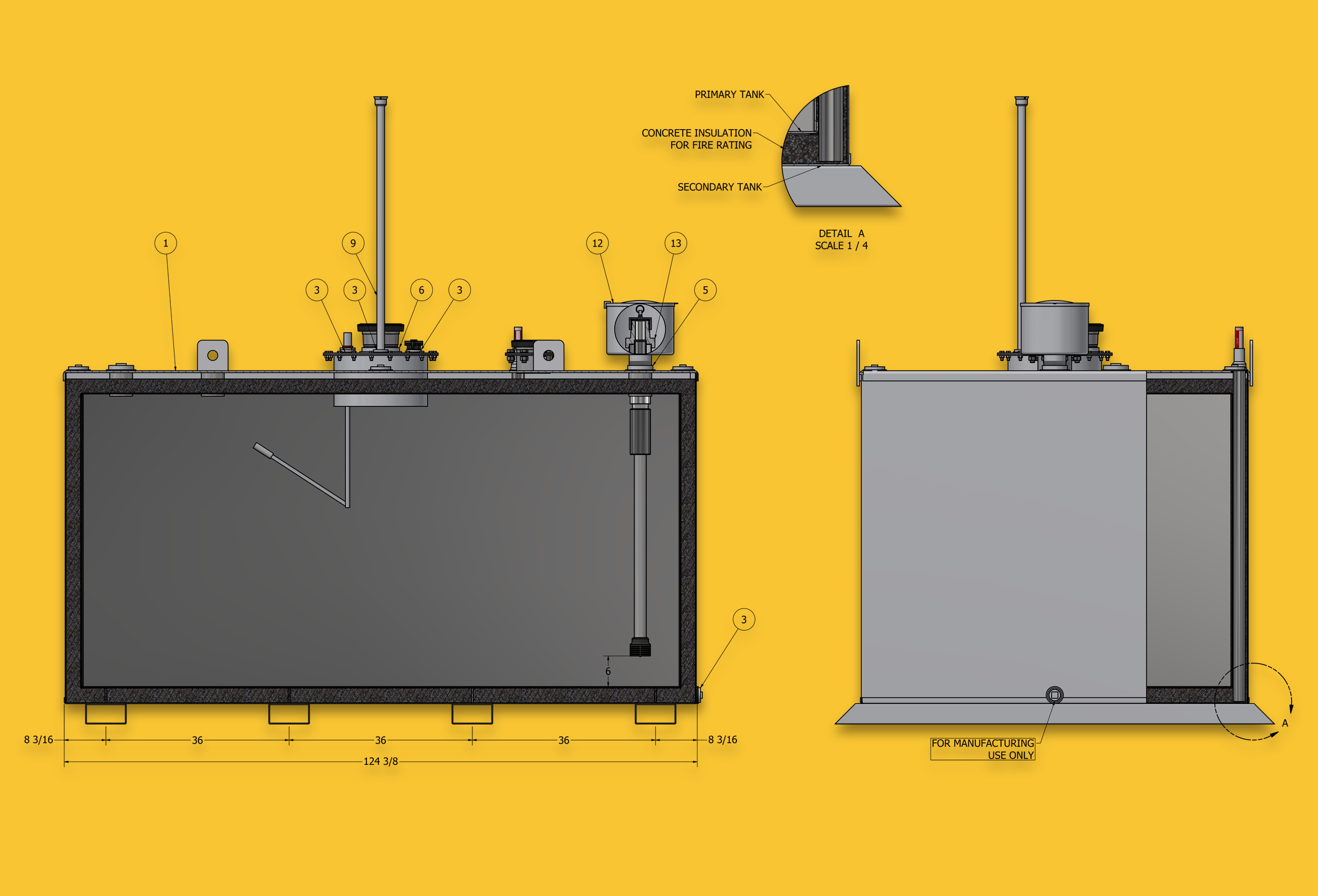

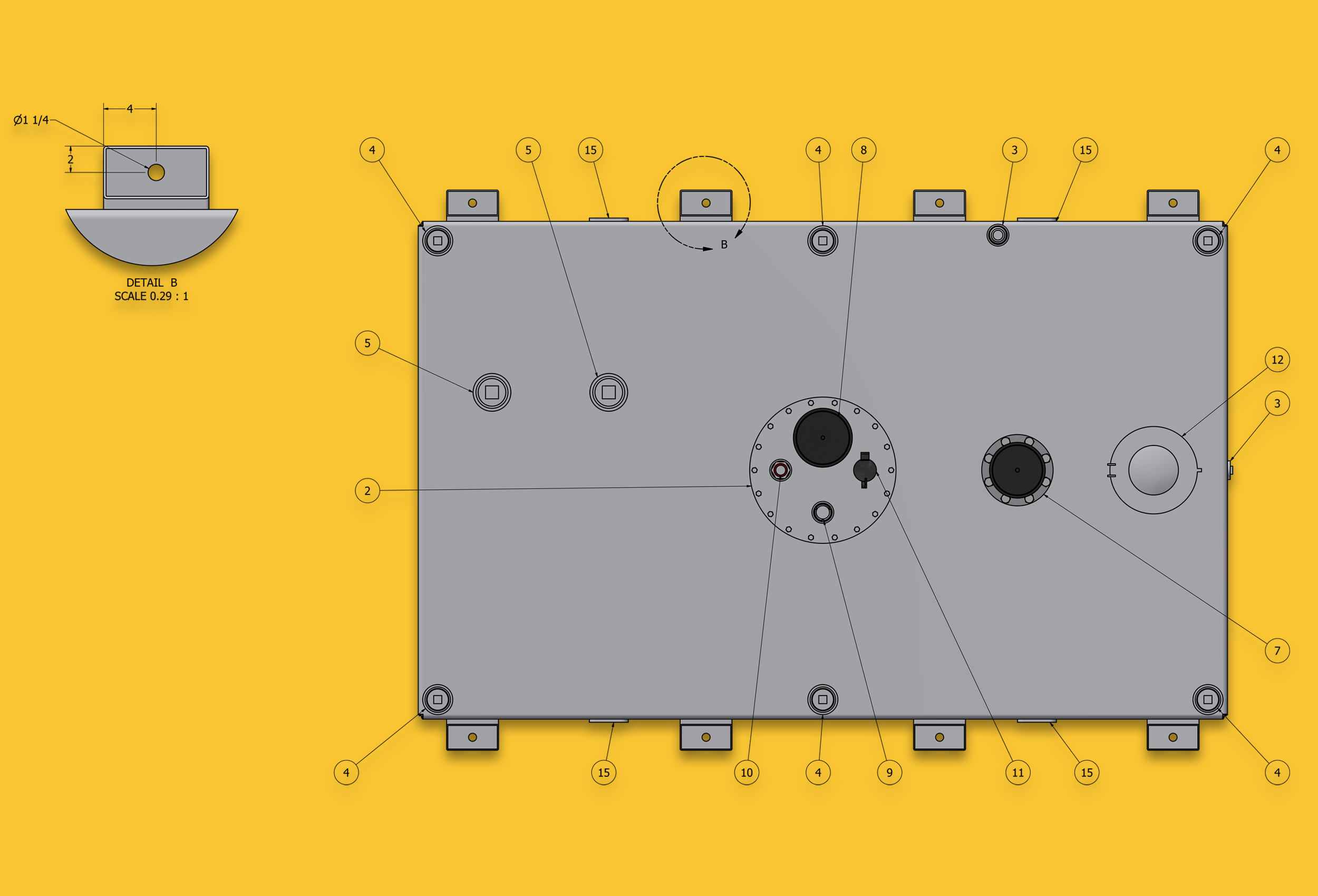

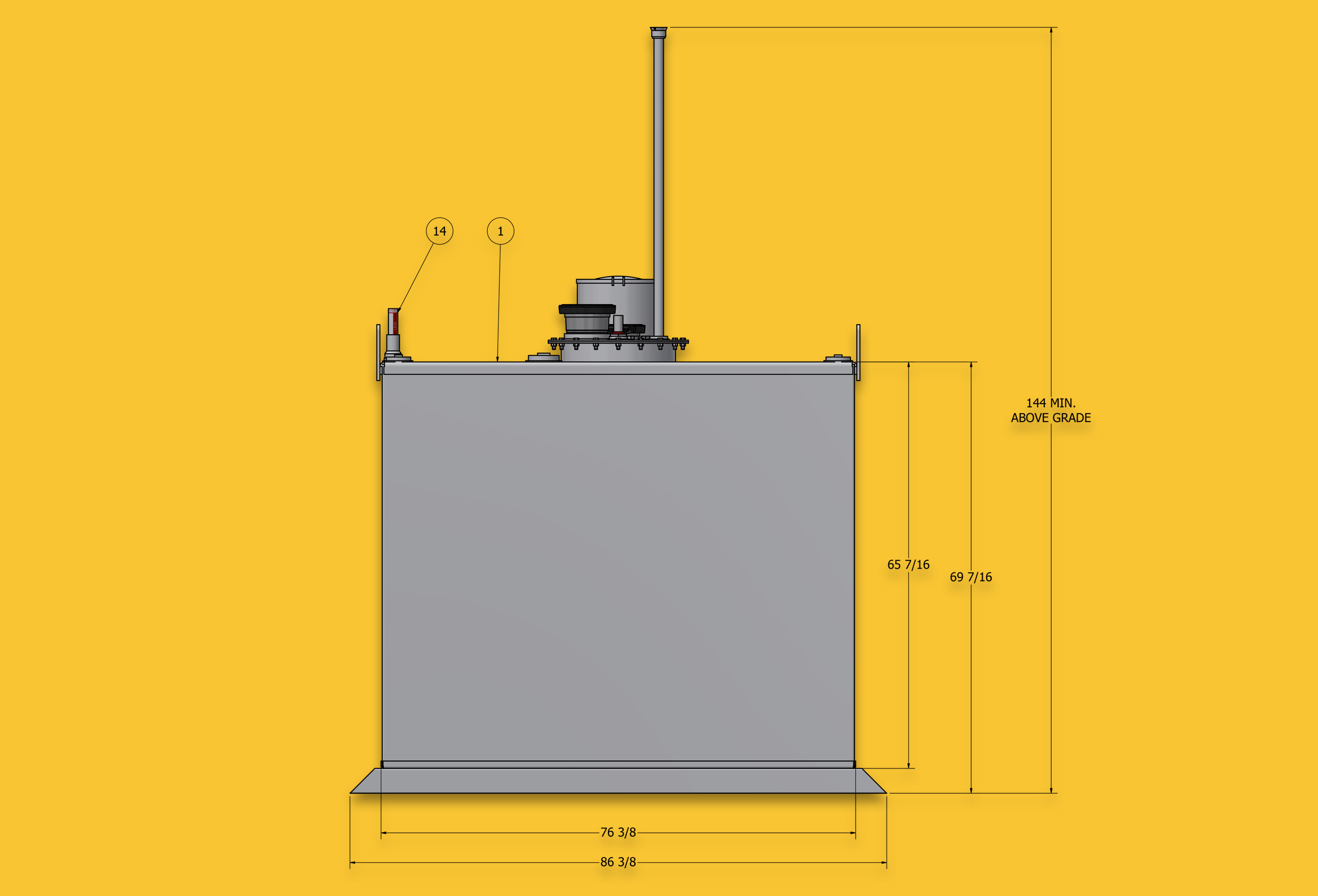

Use approved configuration drawings for the installed footprint, equipment clearances and shipping arrangements.
| Weight | .7800 lbs |
|---|---|
| Dimensions | 126 × 77 × 77 in |
| Fire Rating: | Fireguard® – UL2085 |
| Lead Time | 1 to 4 weeks. Call for details |
03 / YOUR SITE & FUELING NEEDS
Make the next conversation useful.
Bring what you know. Your project discussion can resolve the details that are still open.
What are you fueling?
Identify the fuel and blend, the vehicles or equipment, daily demand, and the time between deliveries.
How will fuel reach it?
Consider available power, pump performance, hose reach, metering, and who supplies each component.
What must happen on site?
Discuss the location, delivery access, unloading, pad and anchoring, electrical work, and commissioning.
IS 2,000 GALLONS THE RIGHT START?
Plan for delivery access, the storage reserve you need and the installed equipment footprint. If your project needs more storage, explore the broader fuel-system range.
04 / BEFORE YOU DECIDE
A few useful answers.
Is the listed capacity the usable fuel volume?
2,000 gallons is the nominal tank capacity. Usable storage depends on the operating fill limit, reserve and draw-off arrangement. Use your expected fuel demand and delivery pattern when discussing sizing.
Does the package include installation?
The package identifies the tank and equipment supply. Confirm delivery, unloading, site preparation, electrical work and commissioning responsibilities in the formal quote.
What should I confirm for my fuel?
Specify the exact fuel and blend so the pump, hose, seals and other selected components can be matched to the application.
Which documents should my project team request?
Ask for the approved configuration drawings, the final component schedule, and the written tank and component warranty terms. Keep the supplied installation, inspection and equipment manuals with your project records.
YOUR 2,000-GALLON READY-2-FILL PROJECT
Turn a tank choice into
a defined project.
Share your fueling needs and the scope you want us to supply. Your formal quote can bring the tank, equipment and project responsibilities together.
