- Manufacturer of Tank: Service Welding and Machine
- Year built: N/A
- Size of Tank: 15,000 Gal.

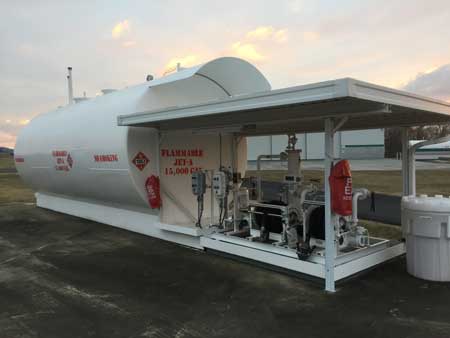

- Type of Tank: Double Wall Jet A Tank
- UL Rating: UL‐142 #A595496
- Any Issues (Leaks, etc.): N/A
- Dimensions: 10′ Diameter, 25′ 6″ Length
- Weight: 27,000 lbs.
- Reference #: 170635
Description
Information and equipment:
- Material: Mild Carbon Steel Diameter: 10′ Length: 25′ 6″ L
- Thickness: Inner Tank‐ 1/4″ Shell 5/16″ Head / Outer Tank: 7GA Outer Shell 7GA Outer Head
- Pull eyes on end of skids and lifting eyes on top. (2) Manways. Vent Stack Pipes. Emergency Vents.
- Internal Liner for Jet A fuel. Painted White. Labeled No Smoking/ Flammable/ Jet A / 15,000 Gal/ 1863 Placards

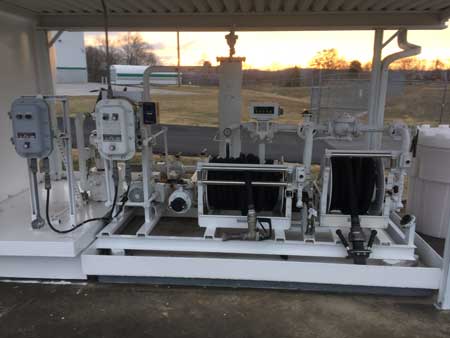

- Extended skid with equipment platform and domed canopy
- Floating Suction
- 3″ Remote fill pipe with valves
- Access Ladder
- Morrison 918 Clock Level Gauge with Alarm Panel
- (2) Nelson 10HP 480V Starter Boxes Type FVNR Class 430 1P
- Hannay EPJ‐24‐23‐24 RT Hose Reel with Aviation Fueling Hose
- Hannay EPJ‐32‐19‐21 RT Hose Reel with Aviation Fueling Hose
- (2) Hannay P56SX147 Motors 1/2HP 115V
- CLA‐VAL 347GF Underwing Refueling Nozzle
- OPW 295 Overwing Nozzle with Spout
- Liquid Controls M7 2 Meter with Mechanical Register
- Facet 640572 Filter Housing
- Blackmer GX25B Fluid Handling Pump
- Betts BTWD306ALVB Metering Valve 3″
- Power Supply Equipment ‐ Includes S.O. Cord with Twist Locking Quick Disconnects
- Includes pipe work, stainless steel flex hoses, fittings, and flanges.<
- Equipment skid would ship separately from the tank.
